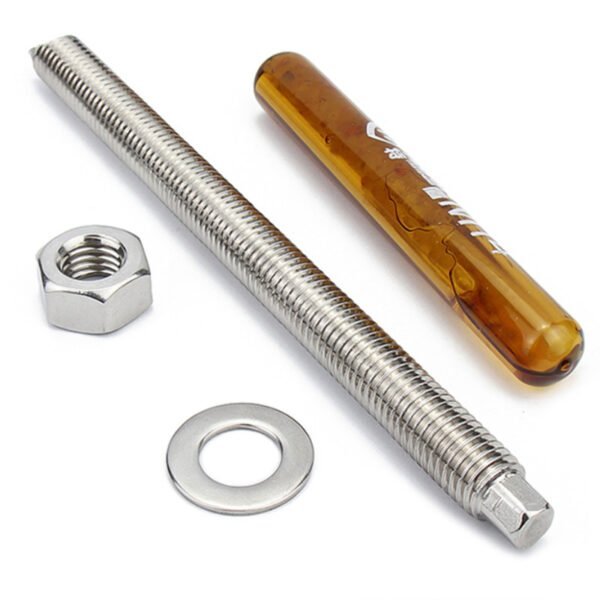

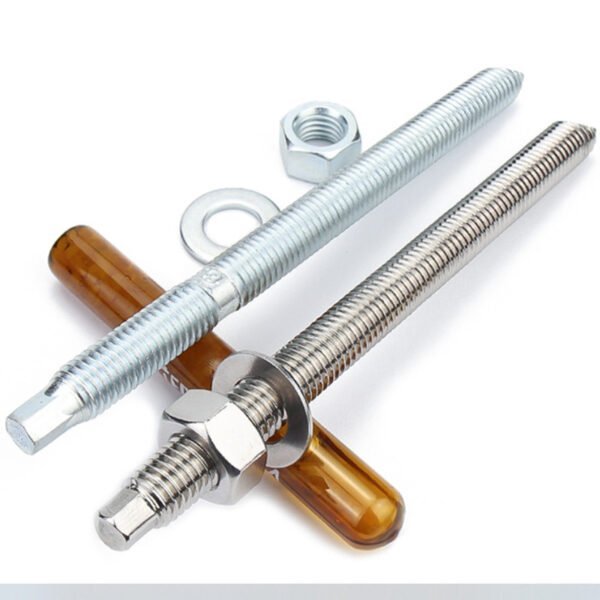

Chemical anchor studs are threaded steel rods set into a drilled hole filled with anchoring resin. Once the resin cures, the stud is bonded into the concrete or masonry with no expansion stress, which makes chemical anchoring useful near edges, in close spacing and in hollow masonry with sleeves.
Linkworld supplies the steel studs only, from M8 to M30 and 80 to 400 mm long, in zinc plated or hot-dip galvanised carbon steel and in stainless steel, with nuts and washers. We do not supply the resin. Studs can be cut to your length and packed in bulk cartons or in your own branded packs.
Chemical Anchor Stud Specifications
| Specification | Configuration |
|---|---|
| Product | Chemical anchor stud / threaded anchor rod |
| Thread sizes | M8, M10, M12, M16, M20, M24 and M30 |
| Lengths | 80 to 400 mm, or cut to order |
| Material | Carbon steel class 5.8 or 8.8; stainless steel 304 or 316 |
| Finish | Zinc plated or hot-dip galvanised; plain stainless |
| End | Chisel point with hex drive end, or flat cut |
| Sets | Stud with nut and washer |
| Resin | Not supplied |
| Packing | Bulk cartons, own-brand boxes and small packs |
Other sizes and finishes can be made to drawing or sample.
Where Chemical Anchor Studs Are Used
- Structural steel base plates columns and brackets on concrete
- Handrails and balustrades near slab edges
- Hollow masonry with mesh sleeves and resin
- Façades and services heavy brackets and supports
- Retrofit work new fixings in existing concrete
Choosing Chemical Anchor Studs
- Match the resin system: use studs of the diameter and embedment the resin manufacturer specifies.
- Material: zinc plated for dry interior use; hot-dip galvanised for outdoor use; 316 stainless for coastal and wet areas.
- Length: allow for embedment, fixture thickness, washer and nut.
- End form: a chisel point helps push the stud through the resin.
Anchor design for structural fixings should follow the resin manufacturer’s data and the project design.
Common Purchasing Mistakes
Expecting resin with the studs. We supply studs only. Order the resin separately from your resin supplier.
Zinc studs outdoors. Use hot-dip galvanised or stainless steel outdoors.
Studs too short for the embedment. Check the embedment the resin system requires.
Mixing grades under one code. Class 5.8, 8.8 and stainless studs should have separate codes.
What to Send with Your Enquiry
| Item | What to tell us |
|---|---|
| Size | Diameter and length |
| Material and class | Class 5.8, 8.8, or 304 / 316 stainless |
| Finish | Zinc or hot-dip galvanised |
| End | Chisel or flat |
| Sets | With or without nut and washer |
| Quantity | Quantity for each size |
| Packing | Bulk carton, own-brand box or small pack |
| Destination | Destination port |
Packing and Supply for Distributors
We pack anchor studs in bulk cartons for trade distribution, or in your own branded boxes, buckets and small packs for retail. Each size can carry its own label. For customers who plan several deliveries through the year, we offer free warehouse storage and staged shipments.
Work With Linkworld
Linkworld has more than 20 years of fastener export experience and runs its own cold heading workshop. Our own QC team checks thread, length, end form and coating in our inspection room before every shipment. We cut studs to your length and make special sizes to drawing.
Frequently Asked Questions
Do you supply the chemical resin?
No. We supply the steel anchor studs, nuts and washers only.
What sizes are chemical anchor studs?
M8 to M30, in lengths from 80 to 400 mm.
Which material should I choose?
Zinc plated for dry interior use, hot-dip galvanised for outdoors, and 316 stainless for coastal areas.
Can studs be cut to length?
Yes. We cut studs to the length you specify.
Do the studs come with nuts and washers?
Yes. They can be supplied as sets with nuts and washers.
