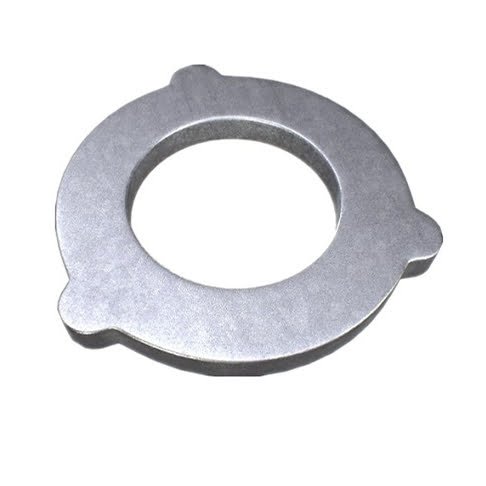

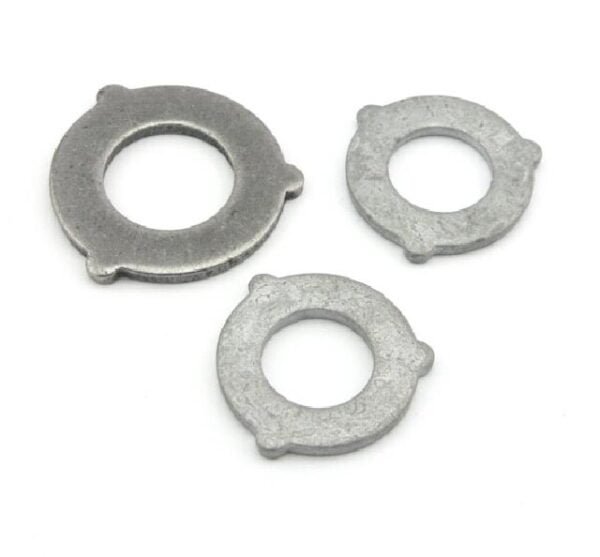

AS1252 structural washers are hardened steel washers used with high-strength structural bolts and nuts in steel construction. The current standard is AS/NZS 1252.1:2016, which covers property class 8.8 bolts, property class 8 nuts and the hardened washers used with them.
Linkworld makes structural washers to AS/NZS 1252.1:2016 for fastener distributors and steel construction suppliers in Australia and New Zealand. They are hardened and tempered, and supplied hot-dip galvanised or plain. We pack in bulk cartons or in your own branded packs.
AS/NZS 1252 Structural Washer Specifications
| Specification | Configuration |
|---|---|
| Standard | AS/NZS 1252.1:2016 |
| Sizes | M12 to M36 (M22 and M27 are non-preferred sizes) |
| Dimensions | Inside diameter, outside diameter and thickness to AS/NZS 1252.1 |
| Material | Hardened and tempered steel |
| Finish | Hot-dip galvanised to AS/NZS 4680, or plain (black) |
| Packing | Bulk cartons, own-brand boxes, buckets and small packs |
Other sizes and finishes can be made to drawing or sample.
Where Structural Washers Are Used
- Structural steel frames in buildings, warehouses and industrial plants
- Bridges and infrastructure with high-strength bolting assemblies
- Fabricated steelwork portal frames, platforms and towers
- Tensioned connections where hardened washers are required under the turned part
How to Select AS1252 Structural Washers
Order by the standard and bolt size, for example “M20 structural washer to AS/NZS 1252.1”. Structural washers are thicker and harder than ordinary flat washers, and their sizes are different from general metric washers.
Match the finish to the bolts and nuts: hot-dip galvanised for exposed work, plain for painted or internal work. Washer use in a structural connection should follow the steel design and the project bolting specification.
Common Purchasing Mistakes
Using only the old name. “AS1252” is still the common trade name, but the current standard is AS/NZS 1252.1:2016. Quote it on your orders.
Substituting ordinary flat washers. A mild steel flat washer is not a hardened structural washer.
Mixing finishes in one assembly. Galvanised washers should go with galvanised bolts and nuts.
Keeping structural and commercial washers under one code. They look similar. Give each its own item code and label.
What to Send with Your Enquiry
| Item | What to tell us |
|---|---|
| Standard | AS/NZS 1252.1:2016 or the project specification |
| Size | M12 to M36 |
| Finish | Hot-dip galvanised or plain |
| Quantity | Quantity for each size |
| Packing | Bulk carton, own-brand box, bucket or small pack |
| Destination | Destination port |
Packing and Supply for Distributors
We pack structural washers in bulk cartons for trade distribution, or in your own branded boxes, buckets and small packs for retail. Each size can carry its own label. For customers who plan several deliveries through the year, we offer free warehouse storage and staged shipments.
Work With Linkworld
Linkworld has more than 20 years of fastener export experience and runs its own cold heading workshop. Our own QC team checks dimensions, hardness and coating in our inspection room before every shipment. We also make washers to drawing or sample for non-standard sizes.
Frequently Asked Questions
What are AS1252 structural washers?
They are hardened steel washers used with high-strength structural bolts and nuts. The current standard is AS/NZS 1252.1:2016.
What sizes are AS/NZS 1252 washers?
The standard covers M12 to M36. M16, M20 and M24 are the most common in steel construction.
Are structural washers hardened?
Yes. AS/NZS 1252.1 washers are through-hardened and tempered steel, which is what separates them from ordinary flat washers.
Can AS1252 washers be hot-dip galvanised?
Yes. Hot-dip galvanised washers are coated to AS/NZS 4680 and are the usual choice for exposed steelwork.
Are stainless steel washers covered by AS/NZS 1252.1?
No. The standard covers hardened carbon steel washers. Stainless washers are a separate item.
Looking for AS/NZS 1252 structural washers for your range?
Send the sizes, finish, quantity and packing you need through the enquiry form below, and our team will reply with the options that fit your range.
Send an Enquiry
Send a drawing, sample or clear reference photo. Add the quantity and application if available, and we can start from the information you already have.
