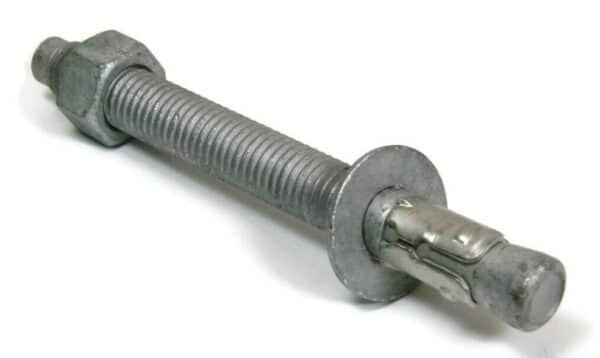

A wedge anchor with a 316 stainless sleeve is a pre-assembled through bolt for fixing into solid concrete. It combines a galvanised steel threaded stud, nut and washer with an expansion sleeve (clip) made from Grade 316 stainless steel. The anchor is set through the fixture into a drilled hole, and tightening the nut draws the tapered end of the stud into the sleeve, which expands against the wall of the hole.
Linkworld supplies galvanised through bolts with 316 sleeves to fastener distributors, trade suppliers and construction buyers, with most demand coming from Australia and New Zealand. We pack in bulk cartons or in your own branded boxes, and sizes outside the common range can be made to your drawing or sample.
Wedge Anchor Specifications
| Specification | Configuration |
|---|---|
| Product | Wedge anchor / through bolt with 316 stainless sleeve |
| Stud, nut and washer | Galvanised steel |
| Expansion sleeve (clip) | Grade 316 stainless steel |
| Common diameters | M8, M10, M12, M16 and M20 |
| Common lengths | Approx. 80 to 160 mm, depending on diameter |
| Base material | Solid concrete |
| Other sizes | Made to drawing or sample |
| Packing | Bulk cartons, own-brand boxes, buckets and small packs |
Other sizes and finishes can be made to drawing or sample.
Where Wedge Anchors with 316 Sleeves Are Used
- Handrails and balustrades fixed to concrete slabs, stairs and landings
- Brackets and frames for mechanical, electrical and HVAC services
- Posts, gates and fencing bolted to concrete footings and slabs
- Façade and structural steel connections where a pre-assembled anchor is specified
- Formwork and temporary fixings on building sites
Why Choose a 316 Stainless Sleeve
- The sleeve does the work: the clip is the part that expands and grips the concrete, so buyers often want it in stainless steel while keeping a galvanised stud.
- Grade 316 stainless: 316 is the stainless grade most often chosen in Australia and New Zealand for coastal and outdoor work.
- Cost-effective combination: a galvanised stud with a 316 sleeve sits between an all-galvanised anchor and a fully stainless one, giving distributors a useful middle option in their range.
- Pre-assembled: stud, sleeve, washer and nut arrive as one unit, ready to install straight through the fixture.
Final anchor selection, embedment and edge distances should follow the project engineer’s design.
Common Purchasing Mistakes
Ordering “stainless sleeve anchors” when you mean wedge anchors. A sleeve anchor has a full-length expansion sleeve, while a wedge anchor (through bolt) has a short clip at the tip. They are different products and should not share a stock code.
Assuming the whole anchor is stainless. On this product only the sleeve is 316 stainless. The stud, nut and washer are galvanised steel. Say so clearly on your pack labels.
Choosing length without allowing for the fixture. The anchor length must cover the fixture thickness, washer and nut as well as the embedment into the concrete.
Mixing finishes under one item code. Galvanised anchors with a 316 sleeve, all-galvanised anchors and all-stainless anchors look similar in a carton. Give each its own code and label.
What to Send with Your Enquiry
| Item | What to tell us |
|---|---|
| Size | Diameter and length for each item; a drawing or sample for other sizes |
| Materials | Stud finish and sleeve grade (standard is galvanised stud with 316 sleeve) |
| Quantity | Quantity for each size |
| Packing | Bulk carton, own-brand box, bucket or small pack, with label details |
| Destination | Destination port |
Packing and Supply for Distributors
We pack wedge anchors in bulk cartons for trade distribution, or in your own branded boxes, buckets and small packs for retail. Each size can carry its own label. For customers who plan several deliveries through the year, we offer free warehouse storage and staged shipments.
Work With Linkworld
Linkworld has more than 20 years of fastener export experience and runs its own cold heading workshop. Our own QC team checks dimensions, thread, sleeve fit and finish in our inspection room before every shipment. We also make fasteners to drawing or sample, so non-standard diameters, lengths and packs are welcome.
Frequently Asked Questions
What is a wedge anchor with a 316 stainless sleeve?
It is a pre-assembled through bolt for solid concrete, with a galvanised steel stud, nut and washer and an expansion sleeve made from Grade 316 stainless steel.
Is a through bolt the same as a wedge anchor?
Yes. In Australia and New Zealand the same product is sold as a through bolt, wedge anchor or clawbolt.
Is the whole anchor stainless steel?
No. Only the sleeve is 316 stainless steel. If you need the stud, nut and washer in stainless as well, ask for a fully stainless wedge anchor.
What sizes are common for galvanised through bolts?
M8 to M20 diameters in lengths of about 80 to 160 mm cover most trade demand. Other sizes can be made to your drawing or sample.
Can you supply wedge anchors in our own packaging?
Yes. We supply bulk cartons or your own branded boxes, buckets and small packs, with a separate label for each size.
