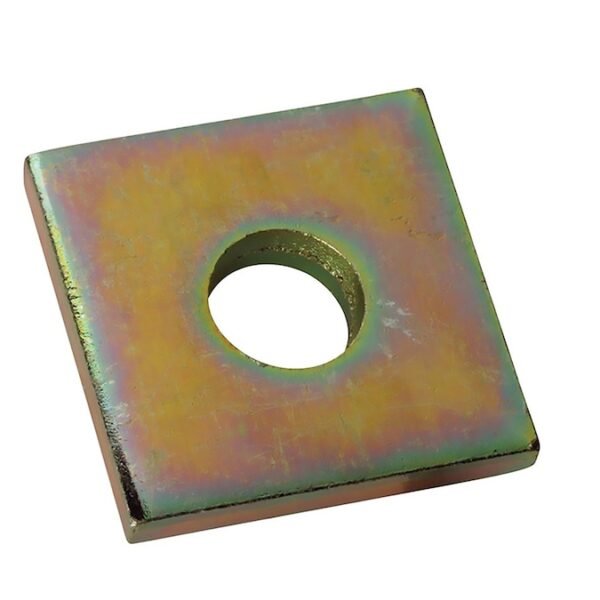

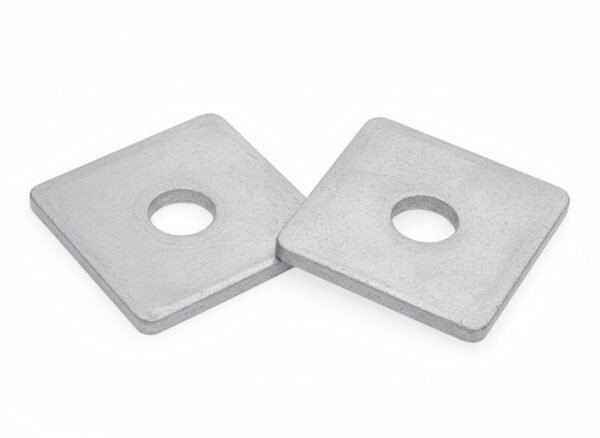

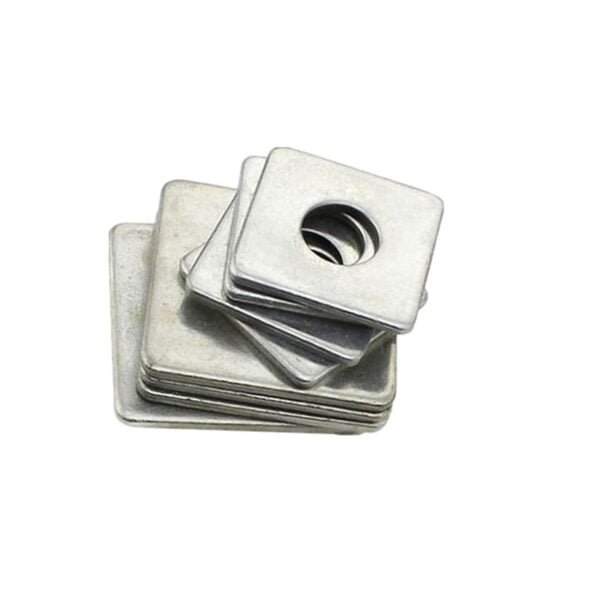

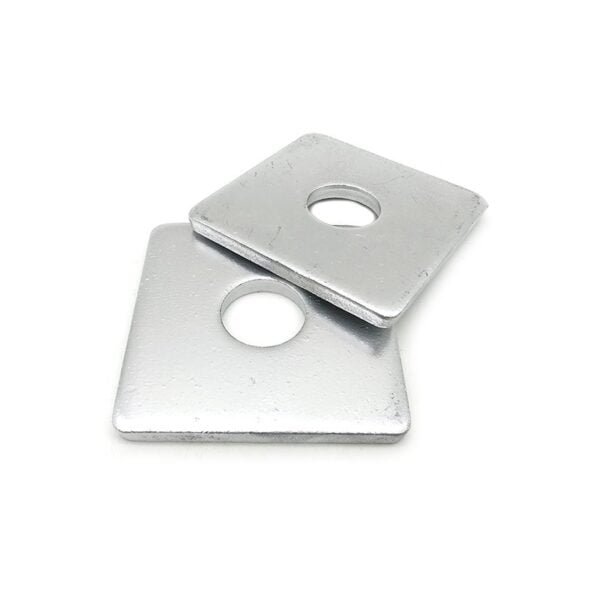

Square washers are flat square plates with a centre hole, used under a bolt head or nut where a larger bearing area than a round washer is needed. In Australia and New Zealand they are a standard part of timber framing, bottom plate fixing, formwork and structural bolting.
Linkworld supplies square washers in low carbon steel with hot-dip galvanised or mechanically galvanised finish, and in stainless steel. 50 x 50 x 3 mm is the most common size we make, and other plate sizes, thicknesses and hole sizes can be made to your drawing or sample. We pack in bulk cartons or in your own branded packs.
Square Washer Specifications
| Specification | Configuration |
|---|---|
| Product | Square plate washer |
| Material | Low carbon steel; stainless steel |
| Finish | Hot-dip galvanised or mechanically galvanised |
| Most common size | 50 x 50 x 3 mm |
| Other common sizes | 40 x 40 x 3, 50 x 50 x 5, 65 x 65 x 5 and 75 x 75 x 6 mm |
| Bolt sizes | M10 to M24 and larger |
| Hole size | To suit the bolt, or to drawing |
| Packing | Bulk cartons, own-brand boxes, buckets and small packs |
Other sizes and finishes can be made to drawing or sample.
Where Square Washers Are Used
- Timber framing under nuts on bolted timber connections
- Bottom plate fixing with anchors and bolts through wall plates
- Formwork and footings with tie rods and anchor bolts
- Steel connections where a wider bearing plate is specified
- Fencing and rural work posts, rails and gates
How to Specify Square Washers
Give the bolt size first, then the plate size and thickness, for example “M12, 50 x 50 x 3 mm”. Several plate sizes can suit the same bolt, so the bolt size alone is not enough.
Then choose the finish. Hot-dip galvanised is the common choice for outdoor and structural work; mechanically galvanised gives an even coating on smaller parts; stainless steel is used for coastal jobs or where the project calls for it.
Common Purchasing Mistakes
Ordering by bolt size only. The same bolt can take several plate sizes. Give the outside size and thickness.
Leaving the hole size open on custom parts. Give the hole diameter or send a drawing.
Writing “galvanised” only. Hot-dip galvanised and mechanically galvanised are different finishes. State which one you need.
Sending a sample with no notes. Confirm the outside size, thickness, hole size, material and finish with the sample.
What to Send with Your Enquiry
| Item | What to tell us |
|---|---|
| Size | Bolt size, plate size, thickness and hole diameter; or a drawing |
| Material | Low carbon steel or stainless steel |
| Finish | Hot-dip galvanised or mechanically galvanised |
| Quantity | Quantity for each size |
| Packing | Bulk carton, own-brand box, bucket or small pack |
| Destination | Destination port |
Packing and Supply for Distributors
We pack square washers in bulk cartons for trade distribution, or in your own branded boxes, buckets and small packs for retail. Each size can carry its own label. For customers who plan several deliveries through the year, we offer free warehouse storage and staged shipments.
Work With Linkworld
Linkworld has more than 20 years of fastener export experience and runs its own cold heading workshop. Our own QC team checks plate size, thickness, hole and coating in our inspection room before every shipment. We make washers and stamped parts to drawing or sample, so special plate sizes and hole sizes are welcome.
Frequently Asked Questions
What are square washers used for?
They are used under bolt heads and nuts where a larger bearing area is needed, such as timber framing, bottom plate fixing, formwork and steel connections.
Are galvanised square washers available?
Yes. We supply low carbon steel square washers in hot-dip galvanised or mechanically galvanised finish.
What size are square plate washers for timber?
50 x 50 x 3 mm is the most common size. Larger and thicker plates are used for bigger bolts and heavier connections.
How do I order square washers for bolts?
Give the bolt size, plate size, thickness, hole size, material, finish, quantity and packing.
Can you make custom square washers?
Yes. We make other plate sizes, thicknesses and hole sizes to your drawing or sample, including stainless steel.
Looking for square washers in your own sizes or packs?
Send the sizes, finish, quantity and packing you need through the enquiry form below, and our team will reply with the options that fit your range.
Send an Enquiry
Send a drawing, sample or clear reference photo. Add the quantity and application if available, and we can start from the information you already have.
