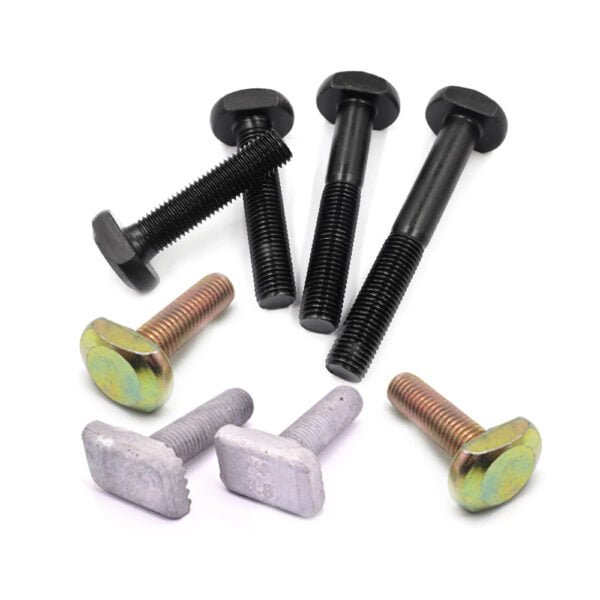

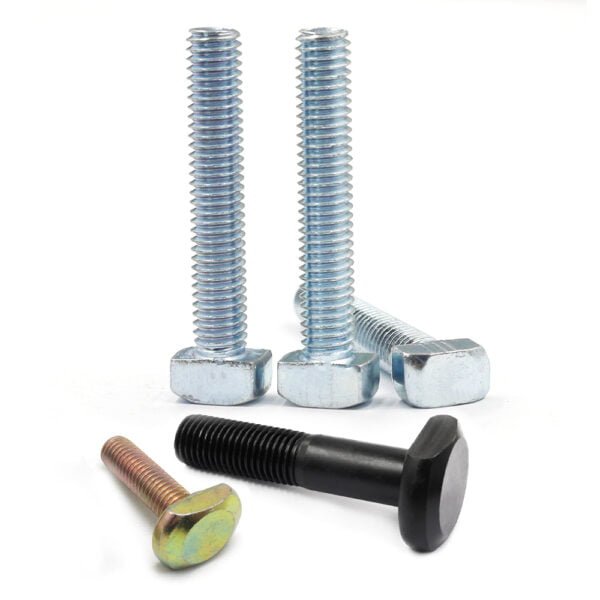

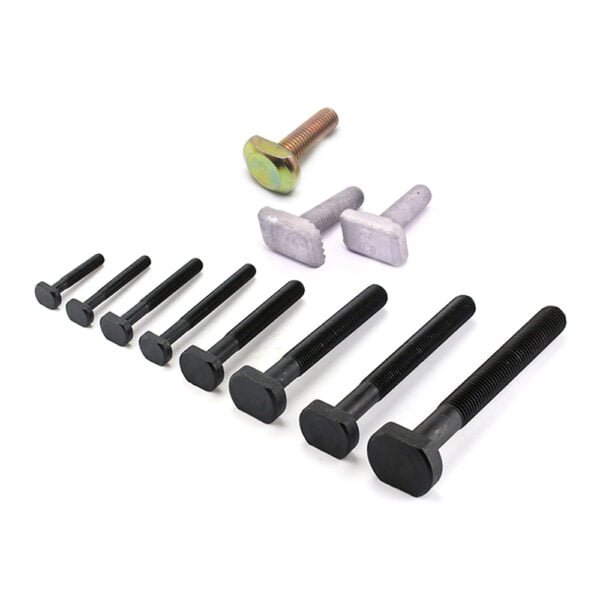

T bolts are bolts with a T-shaped or hammer-shaped head that locks into a slot or channel. Some slide in from the end of a T-slot; hammer head bolts drop into the slot and turn a quarter turn to lock. They are used on machine tables, aluminium profiles, strut channels and solar mounting rails.
Linkworld makes T bolts from M6 to M16 in carbon steel and stainless steel for distributors, solar and equipment makers and OEM buyers. Head size, length, thread and finish are made to your drawing or sample, and we pack in bulk cartons or in your own branded packs.
T Bolt Specifications
| Specification | Configuration |
|---|---|
| Product | T bolt, T head bolt, hammer head bolt, T-slot bolt |
| Thread sizes | M6 to M16 |
| Material | Carbon steel, class 4.8, 8.8 or 10.9; stainless steel 304 or 316 |
| Finish | Zinc plated, hot-dip galvanised, black or plain stainless |
| Head | To suit the slot width and profile |
| Standard | DIN 787, DIN 186 or customer drawing |
| Packing | Bulk cartons, own-brand boxes and small packs; bolt and nut sets on request |
Other sizes and finishes can be made to drawing or sample.
Where T Bolts Are Used
- Solar mounting fixing rails and clamps to mounting systems
- Aluminium profiles framing systems and machine guards
- Strut and anchor channels services, brackets and façade fixings
- Machine tables clamping fixtures in T-slots
- Trailers and truck bodies fixings in channel sections
How to Specify a T Bolt
The head must match the slot. Give the slot width, the head width and thickness, the thread size and the length under the head. For hammer head bolts, give the head shape or send a sample from the rail or profile system.
Choose stainless steel for solar and outdoor systems, zinc or black for indoor machinery, and galvanised for channel systems used outdoors.
Common Purchasing Mistakes
Ordering by thread size only. A T bolt must fit the slot. Give the head size or send a sample.
Mixing profile systems. Heads for different rail and profile systems are not interchangeable.
Forgetting nuts and washers. If you need complete sets, say so at the start.
Leaving the strength class open. State 4.8, 8.8 or 10.9 for carbon steel bolts.
What to Send with Your Enquiry
| Item | What to tell us |
|---|---|
| Size | Thread, length and head dimensions; a drawing or sample |
| Slot | Slot width or the profile system it fits |
| Material and class | Carbon steel class or stainless grade |
| Finish | Zinc, galvanised, black or stainless |
| Quantity | Quantity for each size |
| Packing | Bulk carton, own-brand box or small pack |
| Destination | Destination port |
Packing and Supply for Distributors
We pack T bolts in bulk cartons for trade distribution, or in your own branded boxes, buckets and small packs for retail. Each size can carry its own label. For customers who plan several deliveries through the year, we offer free warehouse storage and staged shipments.
Work With Linkworld
Linkworld has more than 20 years of fastener export experience and runs its own cold heading workshop. Our own QC team checks head form, thread and finish in our inspection room before every shipment. T bolts are mostly made to drawing, so special heads, lengths and sets are welcome.
Frequently Asked Questions
What is a T bolt used for?
It locks into a T-slot or channel to clamp fixtures, profiles, rails and brackets.
What is the difference between a T bolt and a hammer head bolt?
A T bolt slides in from the end of a slot. A hammer head bolt drops into the slot and turns a quarter turn to lock.
What sizes of T bolts do you make?
M6 to M16. Head size and length are made to suit your slot.
Do you make stainless T bolts for solar mounting?
Yes. We make 304 and 316 stainless T bolts and hammer head bolts to your drawing or sample.
Can you supply T bolts with nuts?
Yes. T bolts can be supplied on their own or as sets with nuts and washers.
Looking for T bolts to fit your slot or profile?
Send the drawing or sample, sizes, finish, quantity and packing you need through the enquiry form below, and our team will reply with the options that fit your range.
